Detail Drawing Final Plot @ 1:25 and 1:20 (details) on A1

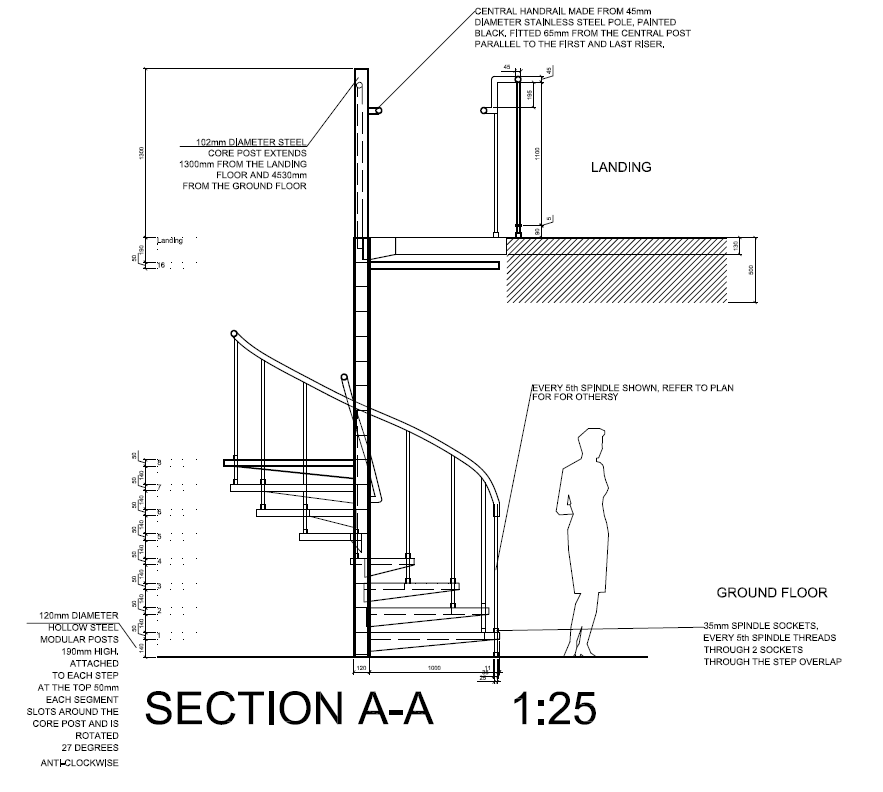

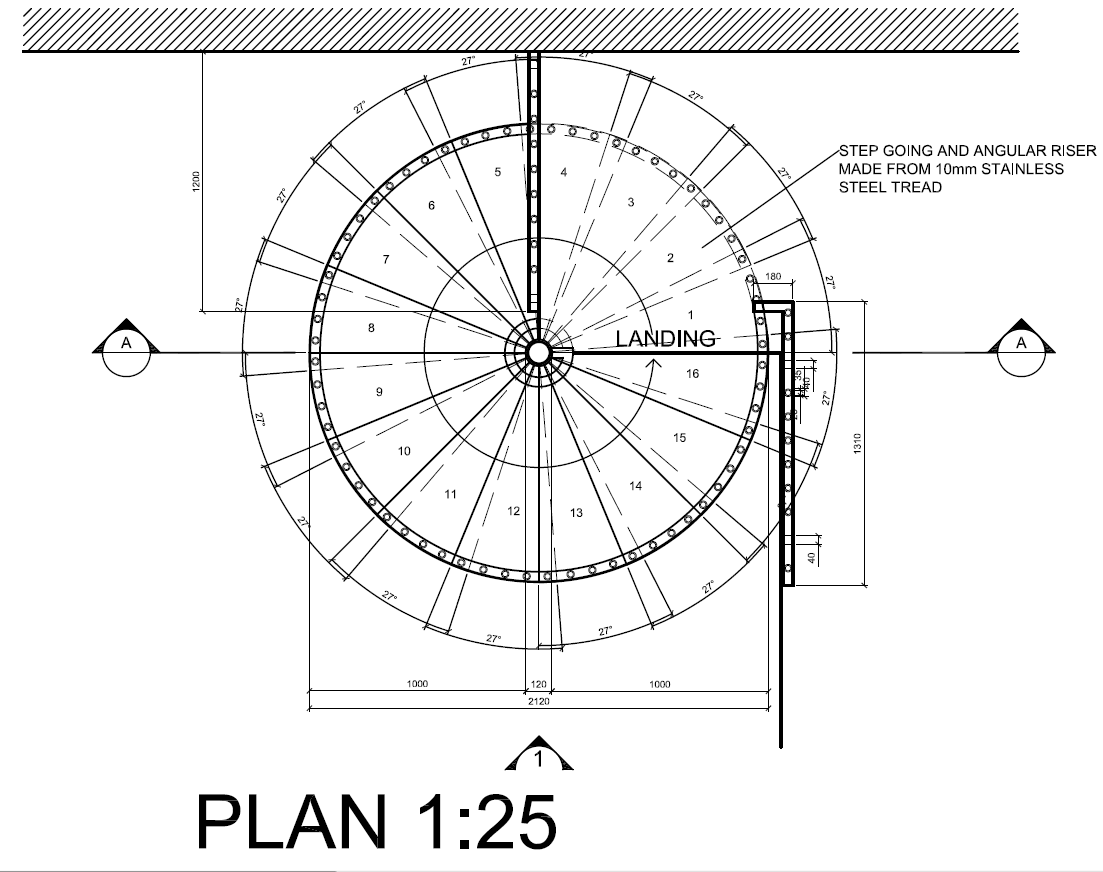

Final A1 scaled plot for the spiral staircase detail drawing - Zephyr Bar Huddersfield including fitting, material and measurement annotation details. AutoCAD 2013

Detail Drawing day 3

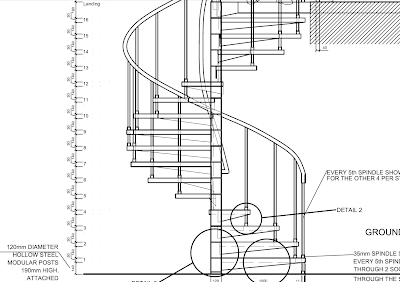

The vast majority of the drawing and details are now complete, the annotation is now next on the agenda - measurements, labeling - notes - section lines and material finishing/fittings.



Detail Drawing day 2

Detail drawing

 As part of our studies into detailing drawing, I was to select a staircase

and begin constructing an accurate AutoCAD scheme including Plans, Elevations,

 Sections and details from measurements taken in-situ (on site). This is

something much more hands on and a nice change to the usual 'conceptual'

work.



 My chosen staircase is this spiral staircase in Hudderfield's Zephyr bar

(an atmospheric, dim lit indie bar) The shape will pose many challenges

especially in the 2D world of AutoCAD. But will be an excellent

addition to my portfolio.

Some of my initial details on day 1 after 12 hours in the studio, the

colours in AutoCAD represent the line hierarchy as when Plotted (printed to a scale)

all lines will be black. Red lines represent items closet to the camera and will be thicker,

Pink represent items that can be seen but are further away, and dashed represent hidden lines

behind other elements.
